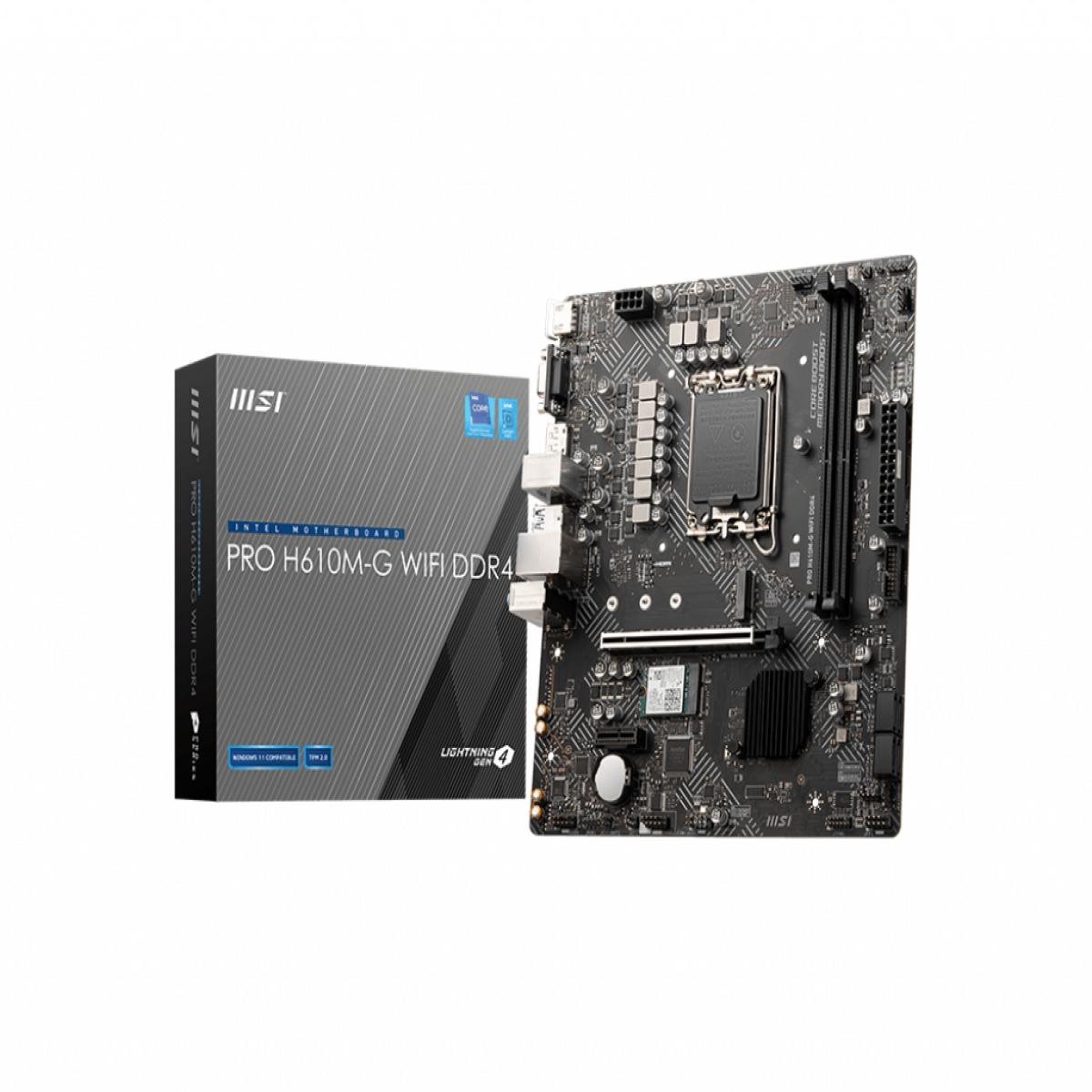

MSI PRO H610M-G WIFI DDR4 motherboard Intel H610 LGA 1700 micro ATX
£67.14
MSI PRO H610M-G WIFI DDR4, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium®, Intel® Pentium® Gold, LGA 1700, DDR4-SDRAM, 64 GB
out of stock
SKU: PRO H610M-G WIFI DDR4
MSI PRO H610M-G WIFI DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium®, Intel® Pentium® Gold. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
| Weight | 0.76kg |
|---|---|
| Brand | MSI |
| Processor socket | LGA 1700 |
| Supported memory types | DDR4-SDRAM |
| Motherboard chipset | Intel H610 |
| Motherboard form factor | micro ATX |
| Specifications | Processor Processor manufacturer: Intel Processor socket: LGA 1700 Compatible processor series: Intel® Celeron®, Intel® Pentium®, Intel® Pentium® Gold Supported processor sockets: LGA 1700 Memory Supported memory types: DDR4-SDRAM Number of memory slots: 2 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: Non-ECC Supported memory clock speeds: 2133,2666,2933,3200 MHz Maximum internal memory: 64 GB Storage controllers Supported storage drive types: SSD Supported storage drive interfaces: M.2, SATA III Number of storage drives supported: 5 RAID support: Yes RAID levels: 0, 1, 5, 10 Graphics Parallel processing technology support: Not supported DirectX version: 12.0 Internal I/O USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2 Number of SATA III connectors: 4 Front panel audio connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes TPM connector: Yes 12V power connector: Yes Rear panel I/O ports USB 2.0 ports quantity: 4 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2 Ethernet LAN (RJ-45) ports: 1 VGA (D-Sub) ports quantity: 1 HDMI ports quantity: 1 DisplayPorts quantity: 1 Network Ethernet LAN: Yes Ethernet interface type: Gigabit Ethernet Wi-Fi: Yes Top Wi-Fi standard: Wi-Fi 5 (802.11ac) Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) Bluetooth: Yes Bluetooth version: 4.2 Features Motherboard chipset: Intel H610 Audio chip: Realtek ALC897 Audio output channels: 7.1 channels Component for: PC Motherboard form factor: micro ATX Motherboard chipset family: Intel Windows operating systems supported: Windows 10, Windows 11 Expansion slots PCI Express x16 (Gen 4.x) slots: 1 Number of M.2 (M) slots: 1 BIOS BIOS type: UEFI AMI BIOS memory size: 256 Mbit Weight & dimensions Width: 244 mm Depth: 211 mm Height: 65 mm Packaging content Cables included: SATA Drivers included: Yes Other features Weight: 764 g |
