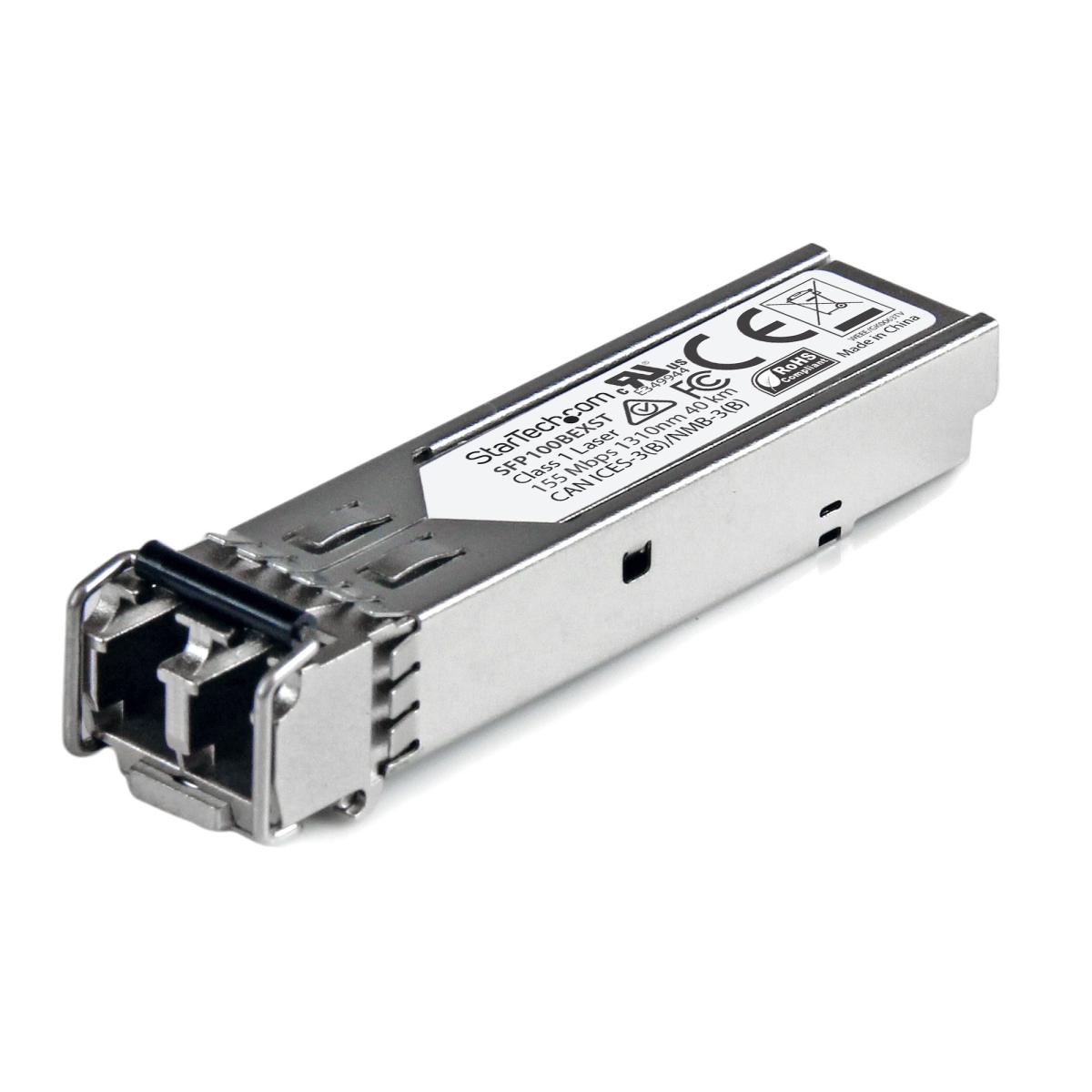

StarTech.com MSA Compliant SFP Transceiver Module - 100BASE-EX~MSA Uncoded SFP Module - 100BASE-EX - 100MbE Single Mode Fiber (SMF) Optic Transceiver - 100Mb Ethernet SFP - LC 40km - 1310nm - DDM
£16.89
out of stock
SKU: SFP100BEXST
100 Mbps | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime WarrantyThe SFP100BEXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 100BASE-EX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 40 km (24.8 mi) and delivers dependable 100 Mb Ethernet connectivity over fiber cabling.Technical Specifications:• Wavelength: 1310nm• Maximum Data Transfer Rate: 155 Mbps• Type: Single Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 40 km (24.8 mi)• Power Consumption: Less than 1 Watt• DDM: YesThis SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
E&OE
- SFP Fiber optic 155 Mbit/s
- Wavelength: 1310 nm
- Hot-Plug support
| Weight | 0.05kg |
|---|---|
| Brand | StarTech.com |
| Specifications | Performance SFP transceiver type: Fiber optic Maximum data transfer rate: 155 Mbit/s Interface type: SFP Single-mode fiber (SMF) supported: Yes Fiber optic connector: LC SFP transceiver standard: EX Maximum transfer distance: 4000 m Wavelength: 1310 nm Networking standards: IEEE 802.3u Duplex system: Full, Half Digital Diagnostics Monitoring (DDM): Yes Wavelength-division multiplexing (WDM): No Features Product colour: Silver Housing material: Aluminium Hot-Plug support: Yes Certificates Compliance certificates: RoHS Certification: CE, FCC, UR Operational conditions Operating temperature (T-T): 0 - 70 °C Storage temperature (T-T): -40 - 85 °C Operating relative humidity (H-H): 5 - 95% Weight & dimensions Width: 13.9 mm Depth: 58.4 mm Height: 12.6 mm Weight: 20 g Packaging content Quantity per pack: 1 pc(s) Packaging data Package width: 90 mm Package depth: 120 mm Package height: 30 mm Package weight: 48 g Logistics data Master (outer) case width: 305 mm Master (outer) case length: 400 mm Harmonized System (HS) code: 85369010 Master (outer) case height: 315 mm Products per master (outer) case: 80 pc(s) |
